A network camera that offers
automatic distillation in any environment

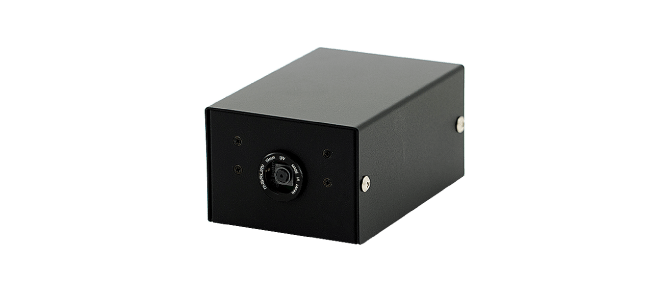

Network camera with integrated image distillation
LISr-IPC1
Main use cases
- Inclement weather
- Fog, snow, rain,
PM2.5, etc.
- Backlighting
- From windows, twilight,
headlights, etc.
- Low light
- At night, indoors,
underwater, etc.
LISr-IPC1 is a network camera that supports both wireless and wired LAN.
It features integrated distillation to clarify unclear images characteristic of surveillance cameras, including those with poor visibility due to inclement weather, darkness due to low light, and dark and distorted areas due to backlighting. Its superior performance and cost efficiency are by far superior to cameras equipped with standard dynamic range improvement functions such as Defog, HDR and WDR. Images are divided into extremely small areas and the dynamic range is improved automatically, eliminating the need to select a mode and ensuring fully automated clarification of images regardless of their condition. A proprietary correction process is applied to color information, providing natural colors even in highly distilled areas. While the process can be fully automated at all times, users can also configure a variety of parameters to suit their needs.
It can be operated from any standard browser, allowing images to be viewed and adjusted not only from a computer but also from a tablet or a smartphone.
Merit 01
- Distillation at 12 frames per second
- VGA 12fps/HD 3fps/
FullHD 1fps
Merit 02
- Web browser operation
- internetExplorer/Chrome/Firefox/Safari
Merit 03
- No need for adjustment between scenes
- Fully automated with capacity for fine adjustments
Merit 04
- External control
- IEEE802.11b/g/h2.4GHz
Supports wireless LAN (IEEE802.11b/g/n 2.4Ghz) / wired LAN (100BASE-TX)
LISr-IPC1 is a network camera that supports both wireless and wired LAN. Images can be read and adjusted from the browser of devices connected to the same network. To view and adjust images through the internet, network adjustments are necessary including acquiring a different global IP address. Commercially available network video recorders can be used when users wish to record video. *Dates for necessary firmware updates and releases unconfirmed For outdoor installations, the camera’s small size (7 cm x 5 cm x 10 cm) allows it to be deployed in the smallest capacity outdoor camera housing available.
Front
Base
Rear
Example connection:Installed on our Development Headquarters building in Kobe
Product specifications of LISr-IPC1 network camera with integrated image distillation
Specifications (model: LISr-IPC1)
Network | Wired LAN | RJ-45 x1: IEEE802.3i (10BASE-T), IEEE802.3u (100BASE-TX) |
---|---|---|
Wireless LAN | IEEE802.11b/g/n(2.4GHz) | |
Protocol | HTTP / Jpegプッシュ方式 RTSP / H.264 | |
Distillation | Algorithm | LISr for Linux |
Resolution | 640 x 480 (12fps) / 1280 x 720 (3fps) / 1920 x 1080 (1fps) | |
Parameters | High-performance distillation, range, expanded contrast threshold, brightness level, adaptation, automatic color correction | |
Camera adjustment | Sharpness, contrast, brightness, color | |
Camera sensor | Model | SONY IMX219PQ |
Resolution | 5 megapixels | |
Size | W 70 mm x D 100 mm x H 50 mm (Not including protrusions) | |
Mode | 480p / 720p / 1080p | |
Process | Back-illuminated process | |
Other | Power supply | DC5V (MAX 2.5A) |
Size | W 70 mm x D 105 mm x H 50 mm (Not including protrusions) | |
Weight | Approx. 180 g | |
Installation | Tripod screw hole (1/4 20UNC) | |
Options | PoE module, LTE module, 3G module |
Samples
See our YouTube channel for various examples
of image distillation use cases.
