Ideal for primarily analog environments such as river, marine and construction sites

Analog image distillation device
nano LISr

Product summary Product specifications

A product for river, marine, and construction site surveillance where video is still mainly analog

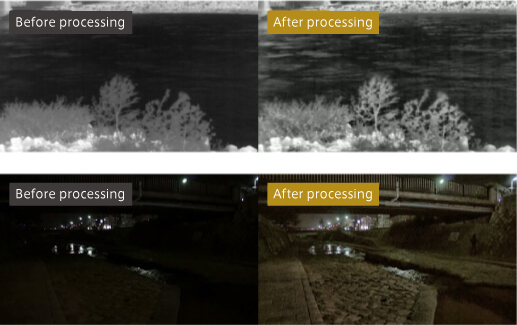

Analog video sources such as near-infrared (thermo) cameras are still the main format used for river, marine and construction site surveillance. This product achieves visibility refinement in dark and low-contrast conditions.
It is designed for the harsh conditions of these sites, with a video signal passthrough function provided in case of power outages.

Example connection:Images can be distilled simply by connecting this product to the video lines between the camera and the monitor

Rear
IP controller (optional)

Product specifications of nano LISr analog image distillation device

Specifications (model: nano LISr)

Input/output Video signal CVBS
Input/output 1 input, 1 output
Signal aspect NTSC compatible
Connectors BNC
Resolution Internal arithmetic resolution: 640 x 480 / 720 x 480
Digital conversion resolution: 1920 x 1080
Color depth 8-bit
Control IP remote control Can be operated by remote control through a LAN connection (optional)
WebUI Operated in a browser through a LAN connection
Processing performance Maximum valid pixels 720 x 480 (progressive)
Processing speed Maximum speed 1/30th of a second per frame (single-frame processing)
Image processing Distillation Equipped with LISr algorithm
Noise reduction 3D filter moving target detection and integration method
Sharpening 2 decomposition LS-Restoration algorithm provided
Environment Operating temperature range –20℃ to 80℃
Storage temperature range -25℃ to 85℃
Operating humidity range 5% to 85% (no condensation)
Storage humidity range 5% to 95% (no condensation)
Power supply Voltage DC5V ±10%
Current 4A
AC adapter 100 to 240VAC 50/60Hz DC5V 30W
Components Weight 1.9kg
External dimensions W: 260mm x D: 230mm x H: 44mm
Accessories AC adapter, power cable, instruction manual CD
Feel free to contact us to learn more about LISr® and Re:Na®.
